Vida BioTechnology Co.,Ltd.

VidaBio is an innovative R&D company specialized in design and batch-manufacturing of nanomaterials-modified environmental and bio sensors.

VidaBio develops and manufactures disposable electrochemical electrodes, based on screen printing, assembly and waterproof package technology, enable to be a key component to develop chemical, immune and biologic sensors based on electrochemistry.

These sensors provide innovations in the fields of environmental, homeland security, process monitoring and clinical analysis.

VidaBio incorporates our global partners with multidisciplinary technology to develop next-generation biosensing solutions.

VBS1000X(Wireless) & VS1(Portable) -Potentiostat

VBS-1000X is a wireless potentiostat. VBS-1000X can be a professional instrument in Lab and  VBS-1000X can be control VBS-1000X with iPad bluetooth.  VBS-1000X electrochemical functions include open circuit voltage(OCV),cyclic voltammetry(CV),linear sweep  voltammetry(LSV),chronoamperometry(CA),differential pulse voltammetry(DPV),square wave voltammetry(SWV)anodic stripping voltammetry(ASV)。

- Potential range: -5V to +5V

- Applied potential: 1m V

- Current ranges: 1 nA to 50 mA

-Current resolution: 0.2% of current range

MESA-100is an accessory for multiple detection. It’s compatible with all brands of electrochemical instruments.

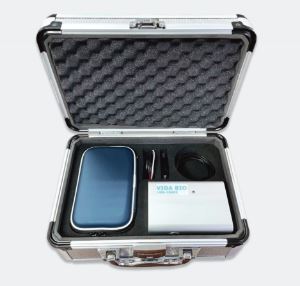

VS1 is a portable electrochemical device with a friendly interface. VS1 is suitable to demonstrate in on-field detection and exhibition. VBS-1000X electrochemical functions include cyclic voltammetry(CV),chronoamperometry(CA),differential pulse voltammetry(DPV),square wave voltammetry(SWV)anodic stripping voltammetry(ASV)。

- Potential range: -2V to +2V

- Applied potential: 1m V

- Current ranges: 1 nA to 20 mA

-Current resolution: 0.2% of current range

Electrochemical sensor

-Flat Gold Electrode use the flat gold surface as electrochemical working electrode. The flat gold electrode integrates screen-printed carbon as counter electrode and screen-printed Ag/AgCl as reference electrode to be a stable three-electrode system in a chip.

-Nano Gold electrode has 60 billion gold nano particles on the working electrode.
The gold  nano electrode integrates screen-printed carbon as counter electrode and screen-printed Ag/AgCl as reference electrode to be a stable three-electrode system in a chip. The every single gold nano particle's diameter is only 25nm. The self-assembled monolayer can be easily modified on the gold nano particles. The  few DNAs and  few porteins can be captured by uniform self-assembled monolayer

-Customized electrode

We can provide different material of electrode for customers:

Flat gold electrode

Nano gold electrode

Siliver electrode

Ag/AgCl electrode

Carbonate electrode

Copper electrode

1.Customer give us the electrode design(DWG. or PDF).
2.VidaBio fabricates the customized for customer

Project Development

VidaBio offers the service for project development. Please contact us. The project development items includes in below



-Specific chemical solution detection

-Heavy metal detection
-Enzyme modified electrode
-Protein biosensor
-DNA biosensor
-Electrochemical consultation
-Electrochemical experiment training
