  G3-Flat Gold electrode (Three electrodes)

  Electrode type :Three electrodes
  Size & Material
  - Substrate: L40mm × W12.5mm × D1mm
  - Working electrode material: φ5.5mm (Gold)
  - Counter electrode: L13.5mm X W4mm (Carbon)
  - Reference electrode: L1.2mm X W1.4mm (Ag/AgCl)

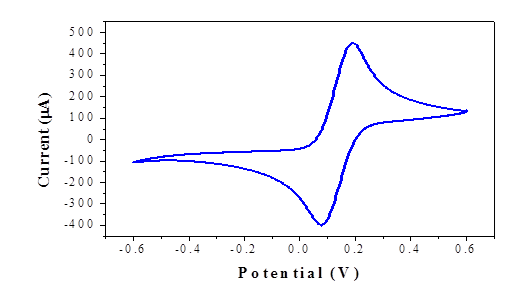

  Cyclic Voltammetry
  - Electrolyte: potassium with 0.1M potassium chloride
  - Scan rate: 100mV/s
  - Scan range: -600mV ~ 600mV
  - Example
  1.Biochip connect setting.
  2.Drop sample buffer or electrolyte cover all electrodes.



  Note：
  - Use immediately once open to atmosphere. Keep away from moisture.
  - The chip is a disposable chip (only for once measure).
