PRODUCT Electrochemical sensor

•
  •
  •
  •
• ProductsElectrochemical sensor G1-Flat Gold Electrode(Single electrode)
  G1-Flat Gold Electrode(Single electrode)

  Electrode type: Single electrode
  Size & Material
  - Substrate: L40mm × W12.5mm × D1mm
  - Working electrode material: φ5.2mm (Gold)

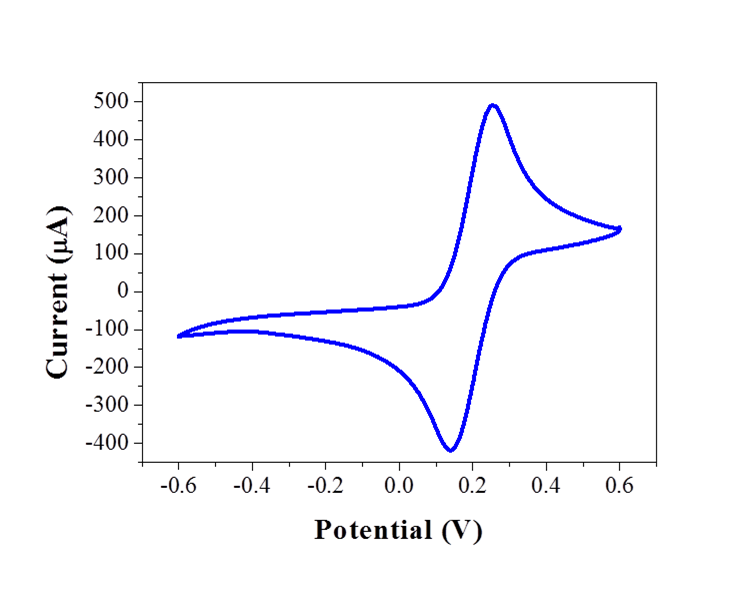

  Cyclic Voltammetry
  - Electrolyte: potassium with 0.1M potassium chloride
  - Scan rate: 100mV/s
  - Scan range: -600mV ~ 600mV
  - Example
  1.Biochip connect setting.
  2.Drop sample buffer or electrolyte cover all electrodes.



  Note：
  - Use immediately once open to atmosphere. Keep away from moisture.
  - The chip is a disposable chip (only for once measure)
