PRODUCT Electrochemical sensor

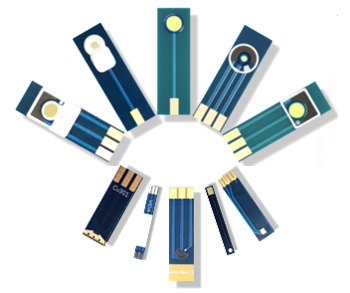

• Customized Electrode

  • VidaBio provides customized electrodes. The different materials integrates with different size of electrodes. Please contact us. We will give our customer the best price.
• GN3-Nano Gold Electrode (Three electrodes)

  • The unique nano gold structure is fabricate on the electrochemical working electrode. Each of good nano gold particle is just 25nm. There are 60 billion nano gold particle on the each working electrode. Nano gold structure is suit for self assembly monolayer modification We ensure the uniformity of nano gold particle and particle size.

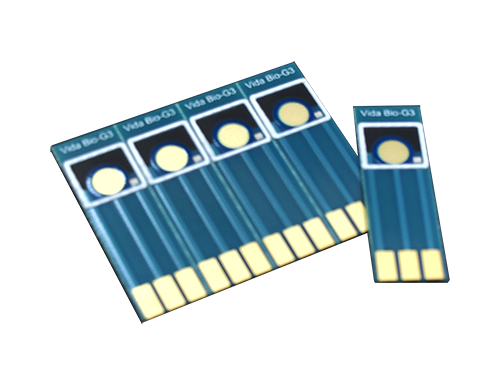

• G3-Flat Gold electrode (Three electrodes)

  • The  high quality gold film is fabricated as working electrode. We screen printed graphite as counter electrode and screen printed Ag/AgCl as reference electrode. The unique technology was adopted on Vidabio working electrode.

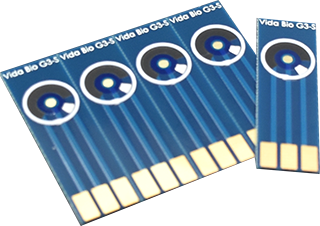

• G3S-Flat gold electrode (Three electrodes)

  • The  high quality gold film is fabricated as working electrode. We screen printed graphite as counter electrode and screen printed Ag/AgCl as reference electrode. The unique technology was adopted on Vidabio working electrode.

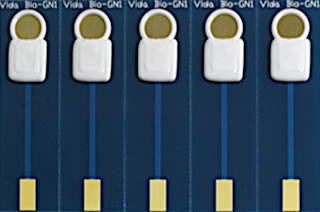

• GN1-Nano Gold Electrode (Single electrode)

  • The unique nano gold structure is fabricate on the electrochemical working electrode. Each of good nano gold particle is just 25nm. There are 60 billion nano gold particle on the each working electrode. Nano gold structure is suit for self assembly monolayer modification We ensure the uniformity of nano gold particle and particle size.

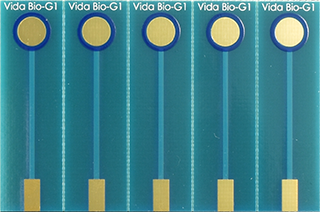

• G1-Flat Gold Electrode(Single electrode)

  • The  high quality gold film is fabricated as working electrode. The good film has ultra-clean surface.User don't need to do any pretreatment on gold film. User can do modification and measure directly without polishing or activation process.
